Pulp & Paper Pump

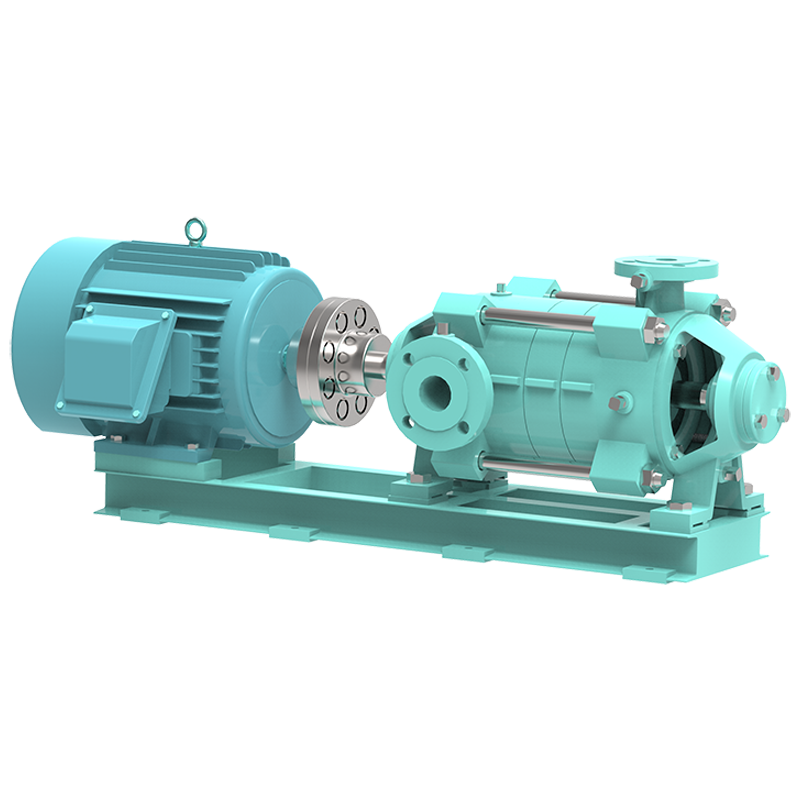

MULTI -STAGE TURBINE (MT) - Horizontal Multi-stage Turbine Pump
Usage and Application
·General and Chemical industries
·Pulp & paper industries
·The suction branch can be led to the right, to the left or upwards
·The impeller followed by diffuser maximize the efficiency of pump
·The axial thrust caused by the single-entry impeller is absorbed by balance-holes
·Capacity : 0.26 m³/Hr ~ 480 m³/Hr
·Head : 8 m ~ 280 m
·Suction Dimension : ø40 mm ~ ø200 mm
·Rotation Direction : CW

* The out of the above range can be supplied according to customer's order placement.

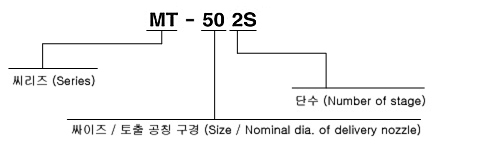

Type Expression

형식 표시방법

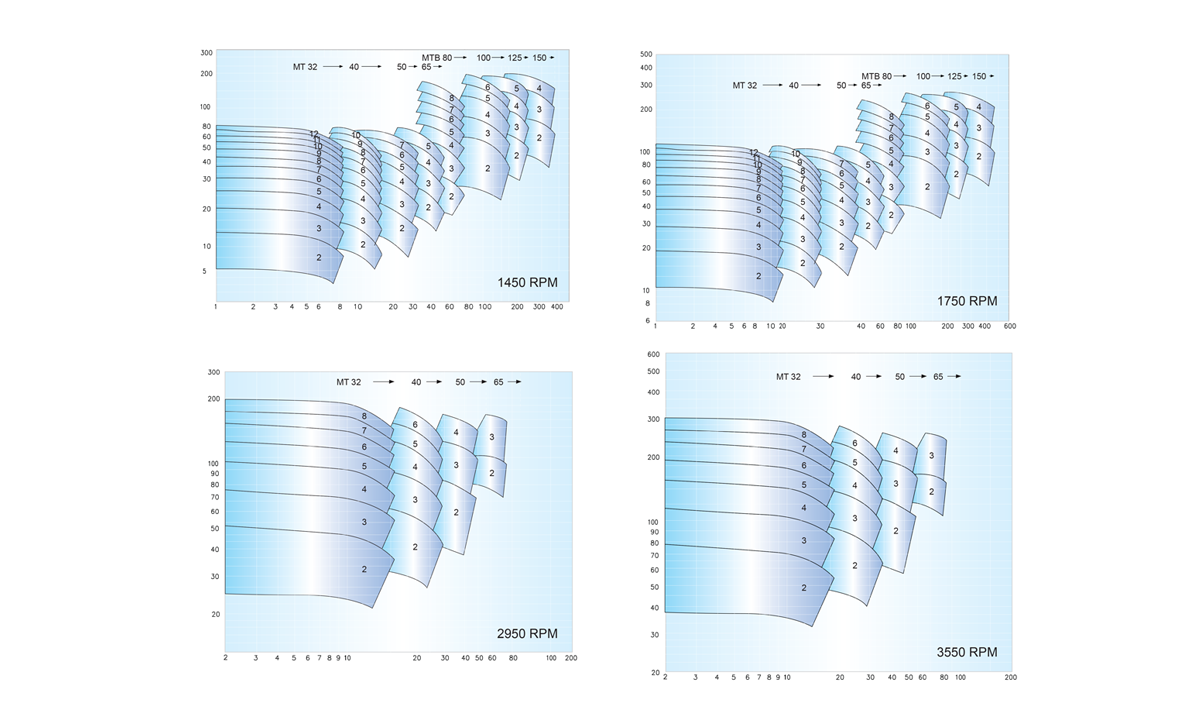

Performance selection chart

제품 선정표
