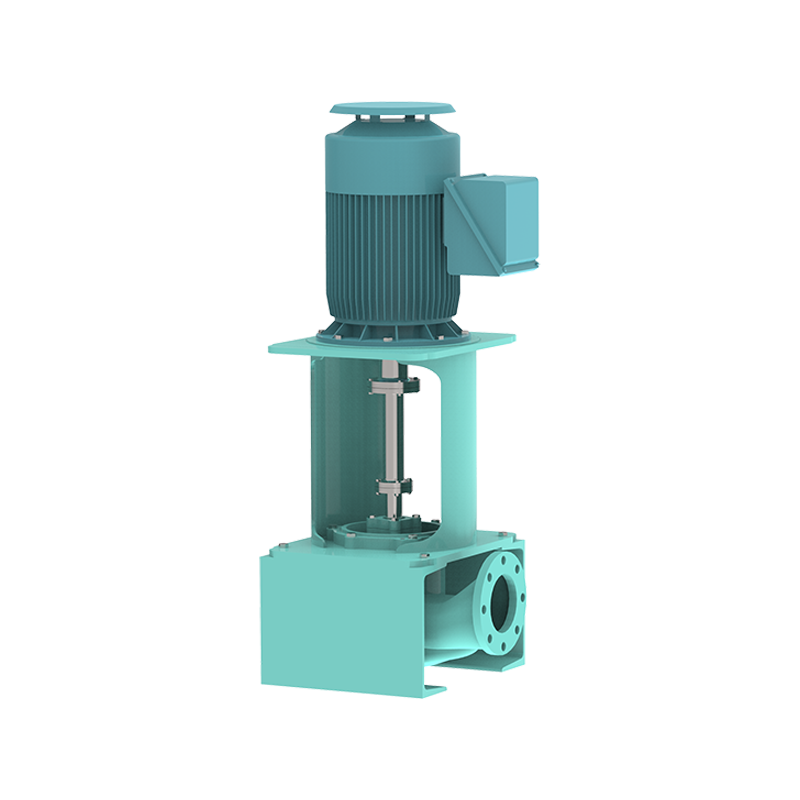

Marine Pump

NVC

CONDENSATE
Usage and Application
·CONDENSATE PUMP
Features
·Low NPSH - required
·Dynamically balanced impeller
·Application of high reliability line bearing
·Easy to maintenance
Specification
·Capacity : 12 m³/Hr ~ 150 m³/Hr
·Head : 10 m ~ 35 m
·Temperature : 0 ℃ ~ 80 ℃
·Suction Dimension : ø100 mm ~ ø125 mm
·Rotation Direction : CW

* The out of the above range can be supplied according to customer's order placement.

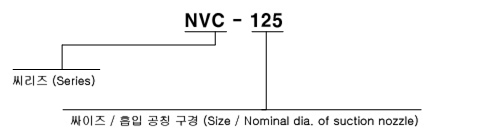

Type Expression

형식 표시방법

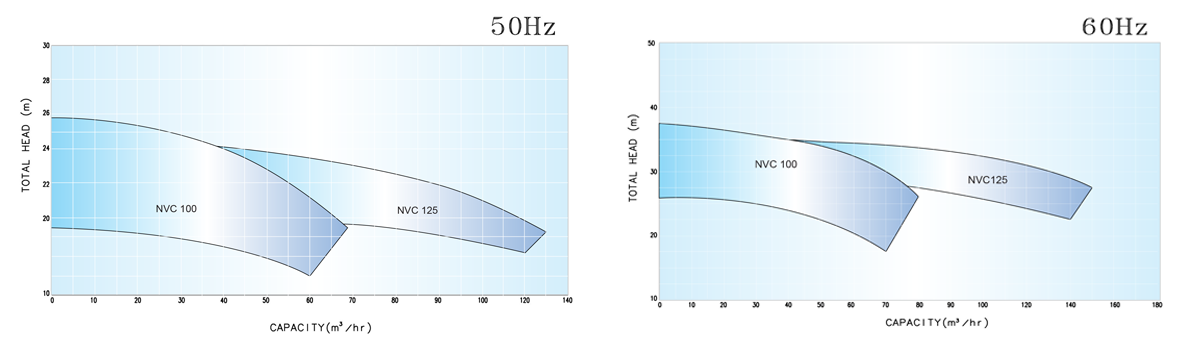

Performance selection chart

제품 선정표
