TSH

Usage and Application

·BOILER FEED WATER PUMP
·COMP. BOILER FEED WATER PUMP

Features

·The stuffing box is fitted with mechanical seal only
·Flushing water is led to the stuffing box from the discharge side through the passage between casing
and wearing and returned to the suction side after flushing mechanical seal.
·Easy to maintenance
·Minimum floor space required

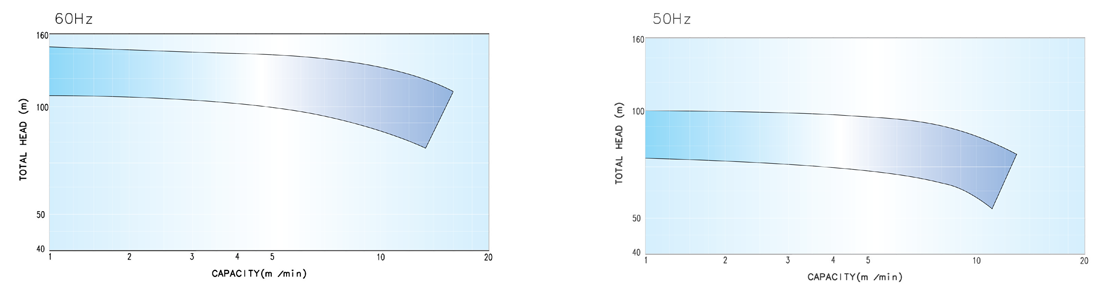

Specification

·Capacity : 1㎥/hr ~ 28㎥/hr
·Head : 80 m ~ 160 m
·Temperature : -20℃ ~ 150℃
·Suction Dimension : ø50mm
·Rotation Direction : CW

* The out of the above range can be supplied according to customer's order placement.
